TSC 6 Self-clinching Studs
Advantages Of Clinchingparts :
Steel, Stainless Steel
Sdvantages Of Clinchingparts :
1.May Be Installed Using Any Parallel Acting Squeezing Force.
2.Provide High Pushout And Torque-out Resistance.
3.Do Not Require Special Hole Preparation, Such As Chamfering And Deburring.
4.Reverse Side Of Metal Sheet Remains Flush.
5.No Retapping Necessary After Application.
6.Low Installed Costs.
Studs：
Externally Threaded Fasteners Which Are Used Where The Attachment Must Be Positioned Before Being Fastened.
Other Size, Material Are Available Upon Request

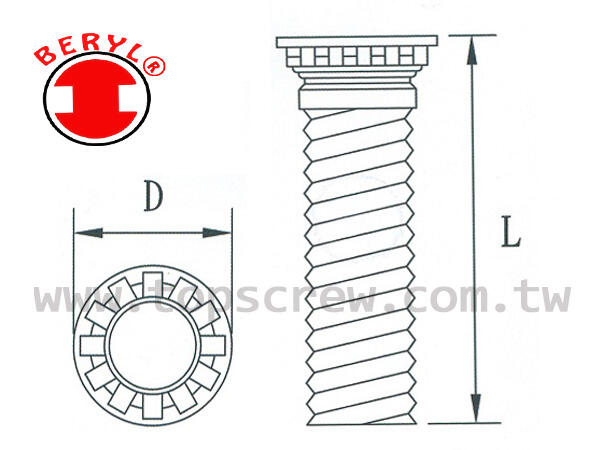

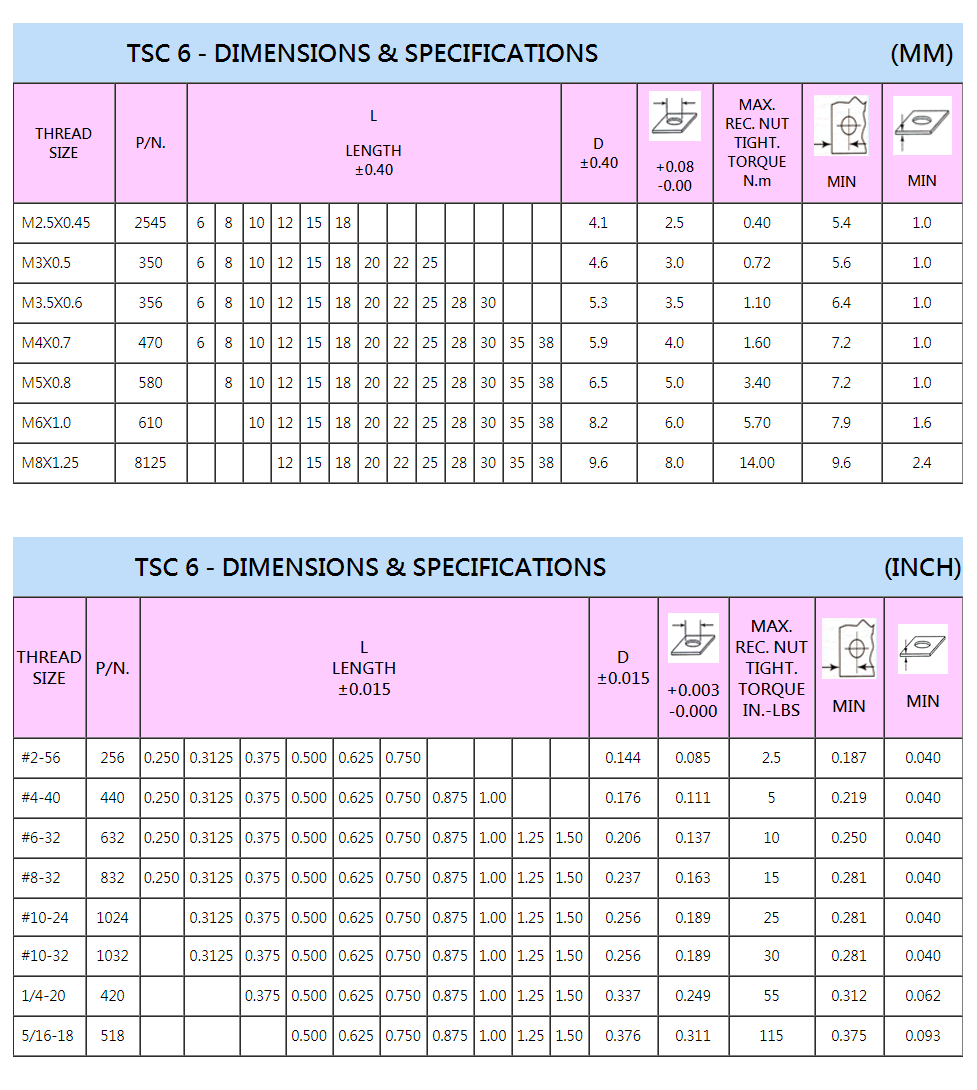

TSC6 self clinching stud demention (mm)
| Thread Size Part NO. | L Length ±0.40 | D ±0.40 | MAX REC. Nut tight Torque N.m | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2.5x0.45 2545 | 6 | 8 | 10 | 12 | 15 | 18 | 4.1 | 0.40 | |||||||
| M3.0x0.5 350 | 6 | 8 | 10 | 12 | 15 | 18 | 20 | 22 | 25 | 4.6 | 0.72 | ||||
| M3.5x0.6 356 | 6 | 8 | 10 | 12 | 15 | 18 | 20 | 22 | 25 | 28 | 30 | 5.3 | 1.10 | ||
| M4x0.7 470 | 6 | 8 | 10 | 12 | 15 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 5.9 | 1.60 |
| M5x0.8 580 | 8 | 10 | 12 | 15 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 6.5 | 3.40 | |
| M6x1.0 610 | 10 | 12 | 15 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 8.2 | 5.70 | ||
| M8x1.25 8125 | 12 | 15 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 9.6 | 14.00 | |||
TSC6 self clinching stud demention (inch)
| Thread Size Part NO. | L Length ±0.015 | D ±0.015 | MAX REC. Nut Tight. Torque In.-LBS | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| #2-56 256 | 0.250 | 0.3125 | 0.375 | 0.500 | 0.625 | 0.750 | 0.144 | 2.5 | ||||
| #4-40 440 | 0.250 | 0.3125 | 0.375 | 0.500 | 0.625 | 0.750 | 0.875 | 1.00 | 0.176 | 5 | ||
| #6-32 632 | 0.250 | 0.3125 | 0.375 | 0.500 | 0.625 | 0.750 | 0.875 | 1.00 | 1.25 | 1.50 | 0.206 | 10 |
| #8-32 832 | 0.250 | 0.3125 | 0.375 | 0.500 | 0.625 | 0.750 | 0.875 | 1.00 | 1.25 | 1.50 | 0.237 | 15 |
| #10-24 1024 | 0.3125 | 0.375 | 0.500 | 0.625 | 0.750 | 0.875 | 1.00 | 1.25 | 1.50 | 0.256 | 25 | |
| #10-32 1032 | 0.3125 | 0.375 | 0.500 | 0.625 | 0.750 | 0.875 | 1.00 | 1.25 | 1.50 | 0.256 | 30 | |
| 1/4-20 420 | 0.375 | 0.500 | 0.625 | 0.750 | 0.875 | 1.00 | 1.25 | 1.50 | 0.337 | 55 | ||
| 5/16-18 518 | 0.500 | 0.625 | 0.750 | 0.875 | 1.00 | 1.25 | 1.50 | 0.376 | 115 | |||
TSC6 self clinching stud Specification (mm)
| Thread Size Part NO. | +0.08 -0.00 | MIN | MIN |
|---|---|---|---|
| M2.5x0.45 2545 | 2.5 | 5.4 | 1.0 |
| M3.0x0.5 350 | 3.0 | 5.6 | 1.0 |
| M3.5x0.6 356 | 3.5 | 6.4 | 1.0 |
| M4x0.7 470 | 4.0 | 7.2 | 1.0 |
| M5x0.8 580 | 5.0 | 7.2 | 1.0 |
| M6x1.0 610 | 6.0 | 7.9 | 1.6 |
| M8x1.25 8125 | 8.0 | 9.6 | 2.4 |
TSC6 self clinching stud Specification (inch)
| Thread Size Part NO. | +0.003 -0.000 | MIN | MIN |
|---|---|---|---|
| #2-56 256 | 0.085 | 0.187 | 0.040 |
| #4-40 440 | 0.111 | 0.219 | 0.040 |
| #6-32 632 | 0.137 | 0.250 | 0.040 |
| #8-32 832 | 0.163 | 0.281 | 0.040 |
| #10-24 1024 | 0.189 | 0.281 | 0.040 |
| #10-32 1032 | 0.189 | 0.281 | 0.040 |
| 1/4-20 420 | 0.249 | 0.312 | 0.062 |
| 5/16-18 518 | 0.311 | 0.375 | 0.093 |
What are self-clinching studs?
Self-clinching studs are mechanical fasteners that embed into thin metal sheets to provide secure and reusable threads.Why use self-clinching studs?
Self-clinching studs offer easy installation, can handle high loads and torque, and are ideal for applications requiring reliable fastening.When to use self-clinching studs?
They are ideal when embedding reusable threads into thin metal sheets, particularly in applications requiring resistance to torque and vibration.Who should use self-clinching studs?
Engineers and designers working on projects requiring strong fastening in thin metal sheets.How do self-clinching studs work?
They are installed by pressing the stud into a pre-drilled hole, using pressure to secure it as a stable fastener.
