TSC 5 Self-clinching Lock Nuts
TSC 5 SELF-CLINCHING LOCK NUTS
Advantages Of Clinchingparts :
1.May Be Installed Using Any Parallel Acting Squeezing Force.
2.Provide High Pushout And Torque-out Resistance.
3.Do Not Require Special Hole Preparation, Such As Chamfering And Deburring.
4.Reverse Side Of Metal Sheet Remains Flush.
5.No Retapping Necessary After Application.
6.Low Installed Costs.
Nuts： Nuts With Thread Strengths Greater Than Mild Steel Screws Are Commonly Used Wherever Strong Internal Threads Are Needed For Component Attachment Of Fabrication Assembly.
Other Size, Material Are Available Upon Request

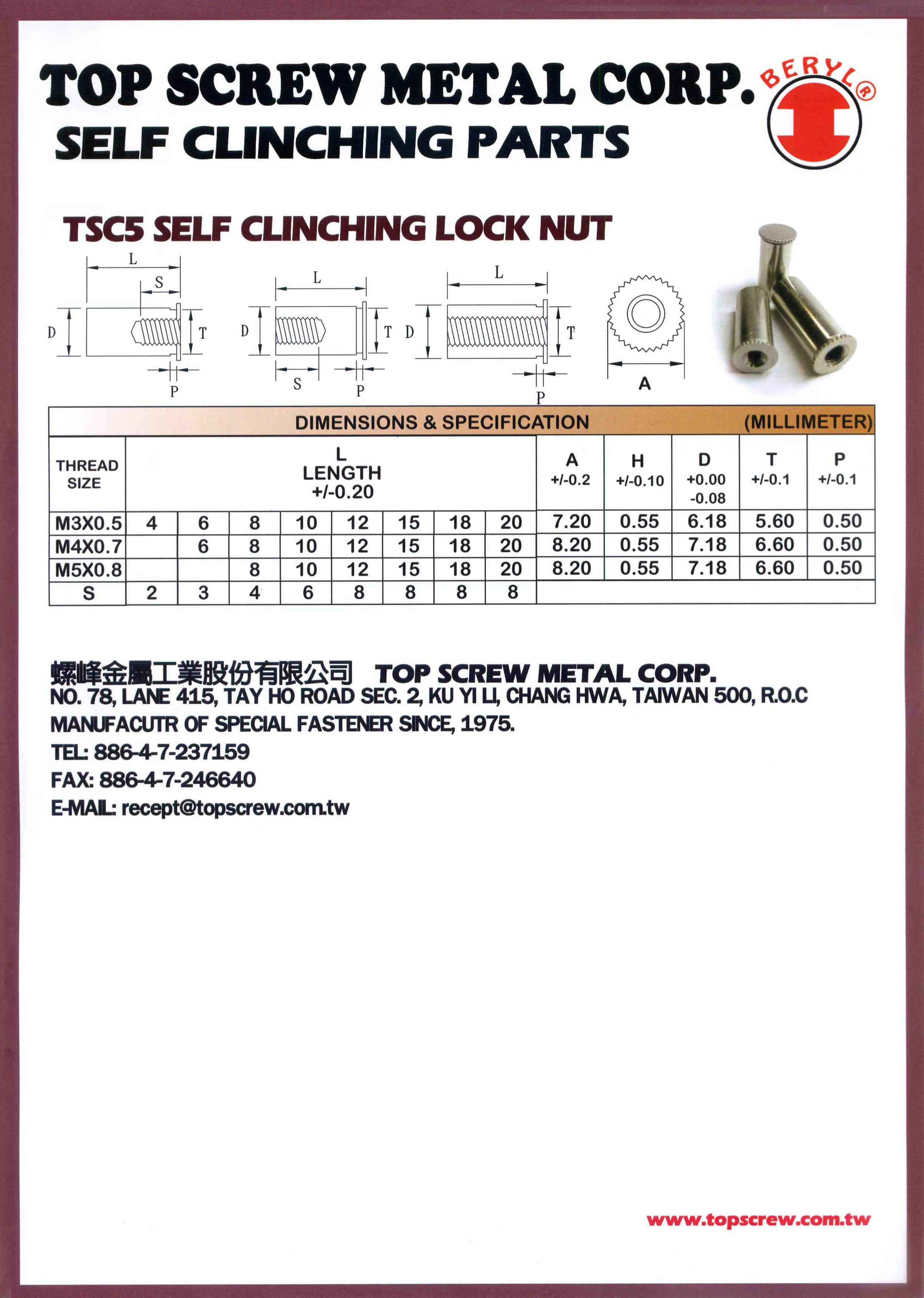

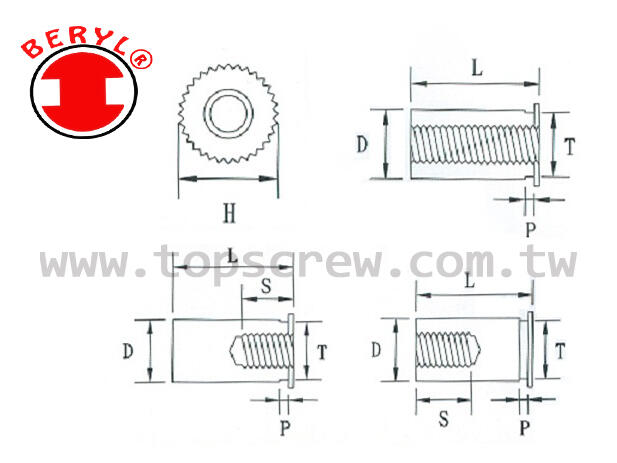

TSC 5 - DIMENSIONS & SPECIFICATIONS
| Thread Size | L Length ±0.20 | H ±0.20 | D +0.00 -0.08 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M3x0.5 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 7.20 | 6.18 |
| M4x0.7 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 8.20 | 7.18 | |
| M5x0.8 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 8.20 | 7.18 | ||
| S | 2 | 3 | 4 | 6 | 8 | 8 | 8 | 8 | 8 | ||
TSC 5 - DIMENSIONS & SPECIFICATIONS
| Thread Size |
+0.08 -0.00 |
MIN |
|---|---|---|
| M3x0.5 | 6.19 | 1.0 |
| M4x0.7 | 7.20 | 1.0 |
| M5x0.8 | 7.20 | 1.0 |
| S |
