Bolt Rivet Nut

[Streamlining Modern Assembly]

In today’s competitive manufacturing landscape, assembly complexity is often the primary driver of cost and quality inconsistency. Our Precision Rivet Nuts are engineered to eliminate the friction in thin-sheet and blind-hole fastening. By providing an all-in-one threaded solution that can be installed from a single side, we empower manufacturers to achieve lightweight designs without compromising structural integrity, streamlining the entire production lifecycle.

[Key Features: The Intersection of Efficiency and Precision]

• Self-Contained Threaded Integrity: Our Rivet Nuts eliminate the need for secondary nut-welding or traditional bolt-and-nut combinations. By establishing a permanent, high-strength thread within the workpiece, you simplify the bill of materials (BOM) and drastically reduce assembly cycle times.

• Hybrid Cold Forging & CNC Excellence: We leverage Taiwan’s world-class manufacturing prowess. Through Cold Forging, we preserve the metal’s continuous grain flow, resulting in superior high-tensile strength and fatigue resistance. This is complemented by CNC Precision machining to guarantee micron-level tolerances, ensuring seamless compatibility with high-speed automated assembly lines.

[Technical Highlights: Engineered for Reliability]

• Cost-Efficient Installation System: The optimized deformation zone ensures stable expansion across various material thicknesses. This "install-and-forget" reliability reduces labor hours and maintenance costs, offering significant cost-efficiency for high-volume automotive and industrial production.

• Advanced Material Durability: Specifically designed for aerospace and maritime environments, our fasteners are available in premium stainless steel and specialized coatings (e.g., Zinc-Nickel, Geomet). These treatments withstand over 1,000 hours of salt spray testing, ensuring long-term resistance to corrosion and mechanical stress.

[Versatile Application Scenarios]

• Automotive: Lightweight chassis reinforcements, interior dashboard carriers, and body-in-white (BIW) assembly.

• Aerospace Components: Cabin interior panels, avionic rack mountings, and secondary structural joining.

• Marine Equipment: Corrosion-resistant maritime instrumentation, interior hull components, and salt-air-exposed enclosures.

• Heavy Machinery: Enclosures requiring single-sided access, electrical control cabinets, and high-vibration agricultural equipment.

Materials Are Available For Bolt Rivet Nut:
Stainless Steel 302/304 (a2/18-8), 316(a4/18-10), Steel, Aluminum 5056/6061, Brass C2600

Characteristcs Of Bolt (screw) Rivet Nut:
1.Easy And Fast In Installation With Handy Tool.
2.Provides High Torque And Strong Threads In Comparing With Normal Fasteners.
3.Welding Process In Not Required In Installing Bolt (screw) Rivet Nut.
4.Able To Reduce Assembling Time And Improve Output.
5.Able To Provide A Strong Binding Support On Combination Applications.
6.Will Not Loosen From Vibrating Objects Once Its' Installed.
7.Bolt (screw) Is Already Combined With Blind Rivet Nut Before Installation, So It Is Not Necessary To Install The Screw On The Blind Rivet Nut.
8.Combined Rigidly To Suit Vibrating Environment.
9.Available In Both Unc And Iso Dimension.

★ Other Sizes Available:

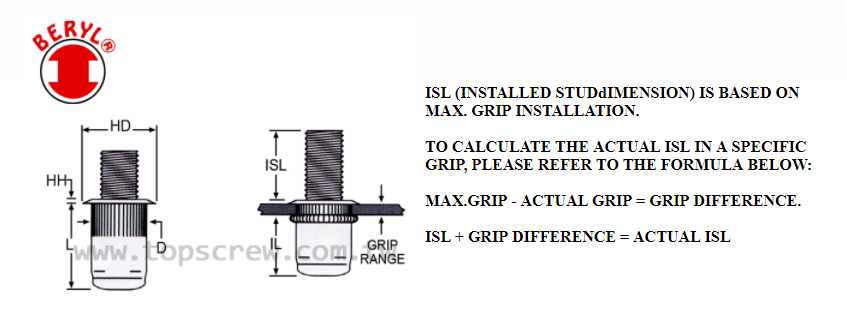

Note 1: Grip Range Can Be Affected By Parent Material Density And Actual Hole Size. We Suggest Trial Installations To Determine Optimum Grip.
Note 2: Additional Unf Fine Threads, Grip Lengths And Materials Are Available. Please Contact Top Screw Metal Corp. For More Detail.

Thread Specification:
Unified - 2a/21 Per Asme B1.1
Metric ­– 6g/21 Per Asme 1.21m

★ Other Size, Material Are Available Upon Request

Bolt rivet nut (mm)

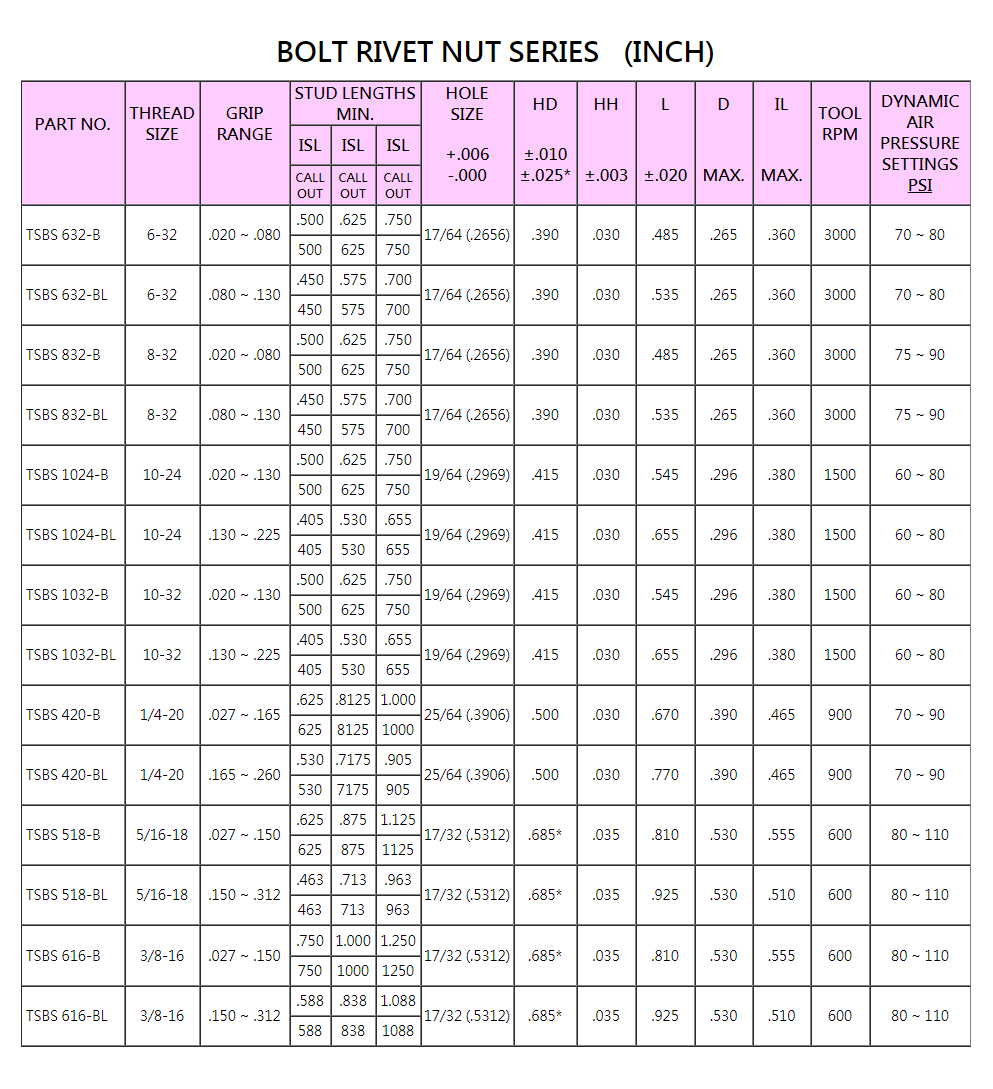

Bolt rivet nut (inch)
