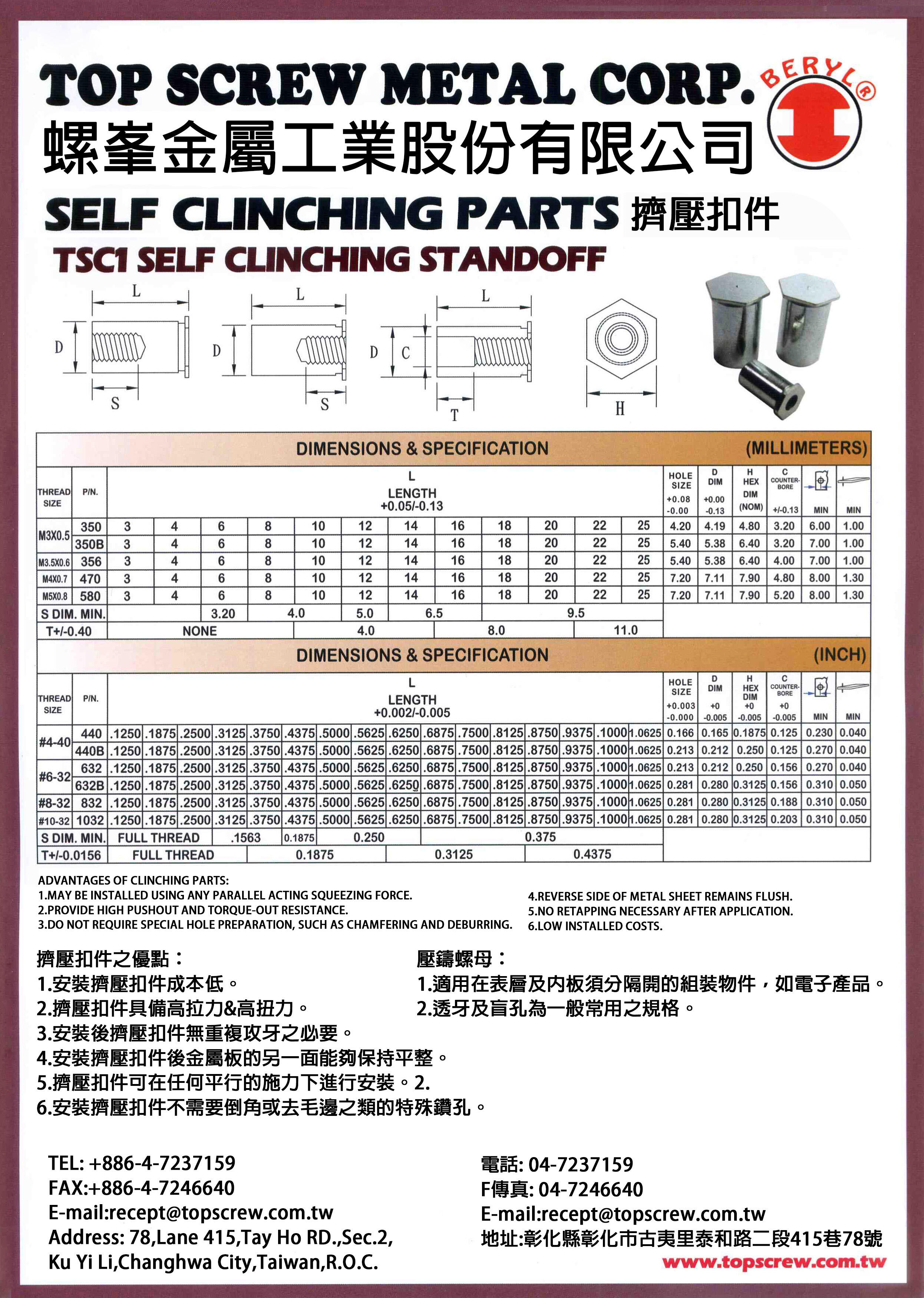

TSC 1 Self-clinching Standoffs

Advantages Of Clinchingparts :

1.May Be Installed Using Any Parallel Acting Squeezing Force.

2.Provide High Pushout And Torque-out Resistance.

3.Do Not Require Special Hole Preparation, Such As Chamfering And Deburring.

4.Reverse Side Of Metal Sheet Remains Flush.

5.No Retapping Necessary After Application.

6.Low Installed Costs.

Standoffs：

Used Where It Is Necessary To Stack Or Space Components Away From The Panel.
Thru-threaded Or Blind Types Are Generally Standard.

Other Size, Material Are Available Upon Request

TSC 1 Self clinching standoffs (mm)

Thread Size Part NO.	L Length +0.05-0.13												+0.08 -0.00	D DIM +0.00 -0.13	MIN	MIN
M3x0.5 350	3	4	6	8	10	12	14	16	18	20	22	25	4.20	4.19	6.00	1.0
M3x0.5 350B													5.40	5.38	7.00	1.0
M3.5x0.6 356													5.40	5.38	7.00	1.0
M4x0.7 470													7.14	7.11	8.00	1.30
M5x0.8 580													7.14	7.11	8.00	1.30
S DIM. MIN.			3.2	4.0		5.0	6.5		9.5
T±0.40	NONE				4.0			8.0			11.0

TSC 1 Self clinching standoffs(inch)

Thread Size Part NO.	L Length +0.002/0.005																+0.003 -0.000	D DIM +0.000 -0.005	MIN	MIN
#4-40 440	.125	.1875	.2500	.3125	.3750	.4375	.5000	.5625	.6250	.6875	.7500	.8125	.8750	.9375	.1000	1.065	.166	.165	.230	.040
#4-40 440B																	.213	.212	.270	.040
#6-32 632																	.213	.212	.270	.040
#6-32 632B																	.281	.280	.310	.050
#8-32 8-32																	.281	.280	.310	.050
#10-32 1032																	.281	.280	.310	.050
S DIM. MIN.	Full Thread			.1563		.1875	.250			.375
T±0.40	Full Thread				.1875				.3125				.4375
