TSC 4 Self-clinching Nuts

TSC 4 SELF-CLINCHING NUTS

1Mmay Be Installed Using Any Parallel Acting Squeezing Force.

2.Provide High Pushout And Torque-out Resistance.

3.Do Not Require Special Hole Preparation, Such As Chamfering And Deburring.

4.Reverse Side Of Metal Sheet Remains Flush.

5.No Retapping Necessary After Application.

6.Low Installed Costs.

Nuts： Nuts With Thread Strengths Greater Than Mild Steel Screws Are Commonly Used Wherever Strong Internal Threads Are Needed For Component Attachment Of Fabrication Assembly.

Other Size, Material Are Available Upon Request

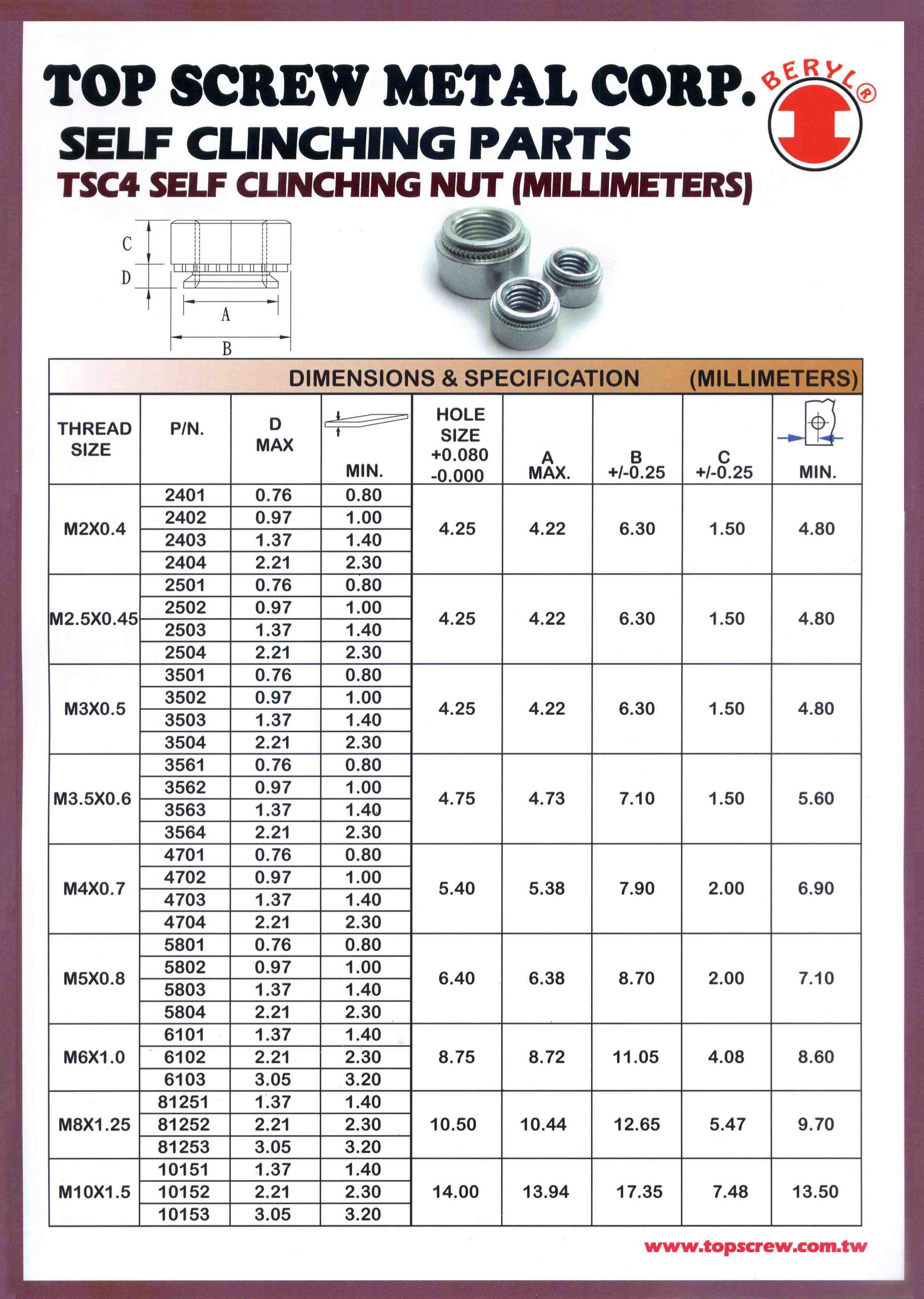

TSC4TSC 4 SELF-CLINCHING NUTS (mm)

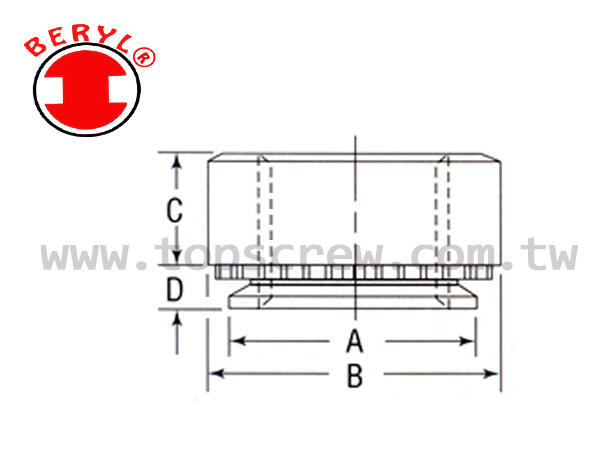

Thread Size Part NO.	D MAX	MIN	+0.080 -0.000	A MAX.	B ±0.25	C ±0.25	MIN
M2x0.4 2401	0.76	0.8	4.25	4.22	6.3	1.50	4.80
M2x0.4 2402	0.97	1.0	4.25	4.22	6.3	1.50	4.80
M2x0.4 2403	1.37	1.4	4.25	4.22	6.3	1.50	4.80
M2x0.4 2404	2.21	2.3	4.25	4.22	6.3	1.50	4.80
M2.5x0.45 2501	0.76	0.8	4.25	4.22	6.3	1.50	4.80
M2.5x0.45 2502	0.97	1.0	4.25	4.22	6.3	1.50	4.80
M2.5x0.45 2503	1.37	1.4	4.25	4.22	6.3	1.50	4.80
M2.5x0.4 5 2504	2.21	2.3	4.25	4.22	6.3	1.50	4.80
M3x0.5 3501	0.76	0.8	4.25	4.22	6.3	1.50	4.80
M3x0.5 3502	0.97	1.0	4.25	4.22	6.3	1.50	4.80
M3x0.5 3503	1.37	1.4	4.25	4.22	6.3	1.50	4.80
M3x0.5 3504	2.21	2.3	4.25	4.22	6.3	1.50	4.80
M3.5x0.6 3561	0.76	0.8	4.75	4.73	7.1	1.50	5.6
M3.5x0.6 3562	0.97	1.0	4.75	4.73	7.1	1.50	5.6
M3.5x0.6 3563	1.37	1.4	4.75	4.73	7.1	1.50	5.6
M3.5x0.6 3564	2.21	2.3	4.75	4.73	7.1	1.50	5.6
M4x0.7 4701	0.76	0.8	5.4	5.38	7.9	1.50	6.9
M4x0.7 4702	0.97	1.0	5.4	5.38	7.9	1.50	6.9
M4x0.7 4703	1.37	1.4	5.4	5.38	7.9	1.50	6.9
M4x0.7 4704	2.21	2.3	5.4	5.38	7.9	1.50	6.9
M5x0.8 5801	0.76	0.8	6.4	6.38	8.7	2.00	7.1
M5x0.8 5802	0.97	1.0	6.4	6.38	8.7	2.00	7.1
M5x0.8 5803	1.37	1.4	6.4	6.38	8.7	2.00	7.1
M5x0.8 5804	2.21	2.3	6.4	6.38	8.7	2.00	7.1
M6x1.0 6101	1.37	1.4	8.75	8.72	11.05	4.08	8.6
M6x1.0 6102	2.21	2.3	8.75	8.72	11.05	4.08	8.6
M6x1.0 6103	3.05	3.2	8.75	8.72	11.05	4.08	8.6
M8x1.25 81251	1.37	1.4	10.50	10.44	12.65	5.47	9.7
M8x1.25 81252	2.21	2.3	10.50	10.44	12.65	5.47	9.7
M8x1.25 81253	3.05	3.2	10.50	10.44	12.65	5.47	9.7
M10x1.5 10151	2.21	2.3	14.00	13.94	17.35	7.48	13.5
M10x1.5 10152	3.05	3.2	14.00	13.94	17.35	7.48	13.5
M10x1.5 10153	6.00	6.4	14.00	13.94	17.35	7.48	13.5

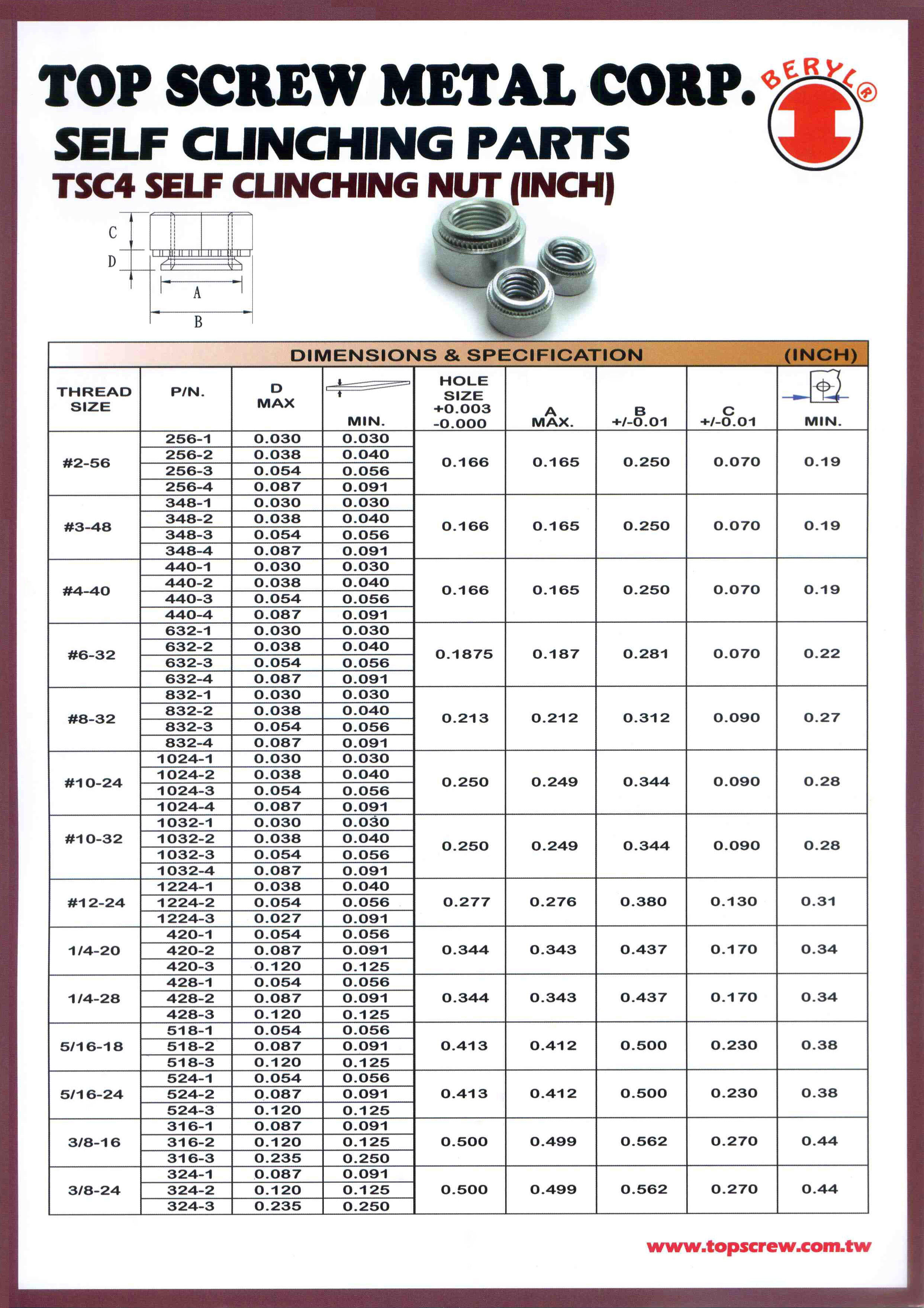

TSC4TSC 4 SELF-CLINCHING NUTS (inch)

Thread Size Part NO.	D MAX	MIN	+0.003 -0.000	A MAX.	B ±0.001	C ±0.001	MIN
#2-56 256-1	0.030	0.030	0.166	0.165	0.250	0.070	0.190
#2-56 256-2	0.038	0.040	0.166	0.165	0.250	0.070	0.190
#2-56 256-3	0.054	0.056	0.166	0.165	0.250	0.070	0.190
#2-56 256-4	0.087	0.091	0.166	0.165	0.250	0.070	0.190
#3-48 348-1	0.030	0.030	0.166	0.165	0.250	0.070	0.190
#3-48 348-2	0.038	0.040	0.166	0.165	0.250	0.070	0.190
#3-48 348-3	0.054	0.056	0.166	0.165	0.250	0.070	0.190
#3-48 348-4	0.087	0.091	0.166	0.165	0.250	0.070	0.190
#4-40 440-1	0.030	0.030	0.166	0.165	0.250	0.070	0.190
#4-40 440-2	0.038	0.040	0.166	0.165	0.250	0.070	0.190
#4-40 440-3	0.054	0.056	0.166	0.165	0.250	0.070	0.190
#4-40 440-4	0.087	0.091	0.166	0.165	0.250	0.070	0.190
#6-32 632-1	0.030	0.030	0.1875	0.187	0.281	0.070	0.220
#6-32 632-2	0.038	0.040	0.1875	0.187	0.281	0.070	0.220
#6-32 632-3	0.054	0.056	0.1875	0.187	0.281	0.070	0.220
#6-32 632-4	0.087	0.091	0.1875	0.187	0.281	0.070	0.220
#8-32 832-1	0.030	0.030	0.213	0.212	0.312	0.090	0.270
#8-32 832-2	0.038	0.040	0.213	0.212	0.312	0.090	0.270
#8-32 832-3	0.054	0.056	0.213	0.212	0.312	0.090	0.270
#8-32 832-4	0.087	0.091	0.213	0.212	0.312	0.090	0.270
#10-24 1024-1	0.030	0.030	0.250	0.249	0.344	0.090	0.280
#10-24 1024-2	0.038	0.040	0.250	0.249	0.344	0.090	0.280
#10-24 1024-3	0.054	0.056	0.250	0.249	0.344	0.090	0.280
#10-24 1024-4	0.087	0.091	0.250	0.249	0.344	0.090	0.280
#10-32 1032-1	0.030	0.030	0.250	0.249	0.344	0.090	0.280
#10-32 1032-2	0.038	0.040	0.250	0.249	0.344	0.090	0.280
#10-32 1032-3	0.054	0.056	0.250	0.249	0.344	0.090	0.280
#10-32 1032-4	0.087	0.091	0.250	0.249	0.344	0.090	0.280
#12-24 1224-1	0.038	0.040	0.277	0.276	0.380	0.130	0.310
#12-24 1224-2	0.054	0.056	0.277	0.276	0.380	0.130	0.310
#12-24 1224-3	0.087	0.091	0.277	0.276	0.380	0.130	0.310
1/4-20 420-1	0.054	0.056	0.344	0.343	0.437	0.170	0.340
1/4-20 420-2	0.087	0.091	0.344	0.343	0.437	0.170	0.340
1/4-20 420-3	0.120	0.125	0.344	0.343	0.437	0.170	0.340
1/4-28 428-1	0.054	0.056	0.344	0.343	0.437	0.170	0.340
1/4-28 428-2	0.087	0.091	0.344	0.343	0.437	0.170	0.340
1/4-28 428-3	0.120	0.125	0.344	0.343	0.437	0.170	0.340
5/16-18 518-1	0.054	0.056	0.413	0.412	0.500	0.230	0.380
5/16-18 518-2	0.087	0.091	0.413	0.412	0.500	0.230	0.380
5/16-18 518-3	0.120	0.125	0.413	0.412	0.500	0.230	0.380
5/16-24 524-1	0.054	0.056	0.413	0.412	0.500	0.230	0.380
5/16-24 524-2	0.087	0.091	0.413	0.412	0.500	0.230	0.380
5/16-24 524-3	0.120	0.125	0.413	0.412	0.500	0.230	0.380
3/8-16 316-1	0.087	0.091	0.500	0.499	0.562	0.270	0.440
3/8-16 316-2	0.120	0.125	0.500	0.499	0.562	0.270	0.440
3/8-16 316-3	0.235	0.250	0.500	0.499	0.562	0.270	0.440
3/8-24 324-1	0.087	0.091	0.500	0.499	0.562	0.270	0.440
3/8-24 324-2	0.120	0.125	0.500	0.499	0.562	0.270	0.440
3/8-24 324-3	0.235	0.250	0.500	0.499	0.562	0.270	0.440

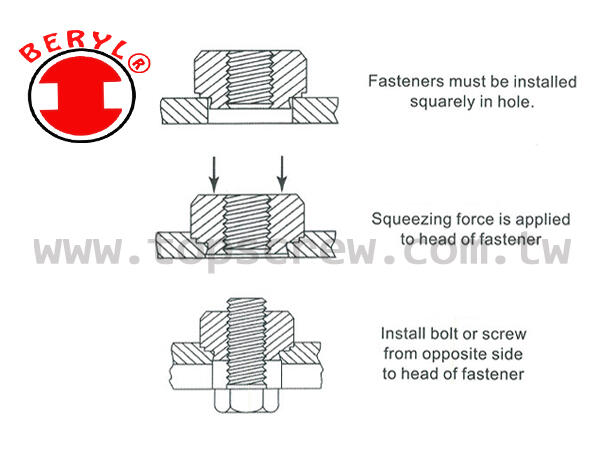

INSTALL THE CLINCHING PART - TSC4
